PGB1 General Silicon Pressure Transmitter
Silicon pressure transmitter with isolated stainless steel diaphragm as sensing element. This product is fully tested by computer automatically, and trimmed by laser for zero and sensitivity in a wider temperature range. Its amplifier circuit is built in stainless steel housing, to transform sensor signal into standard output signal. This transmitter features integrated construction, rigid and robust, high measuring accuracy, good long term stability, and is suitable for pressure measurement in general industry application.
Hirschmann (DIN)
Hirschmann (DIN)

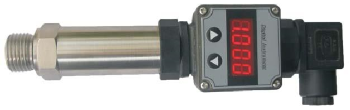

LED Display

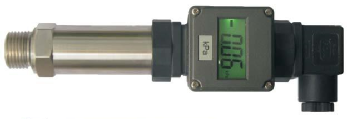

LCD Display
Water-proof connector
Cable (lock nut)
Price:
Variant price modifier:
Base price with tax:
Salesprice with discount:
Sales price:
130,00 €
Discount:
Tax amount:
Usually ships in 15 to 20 days
Features
- Wide measuring pressure range: 0~0.1...1000bar
- Against thunder stroke, against radio-frequency interference
- Full stainless steel construction
- Reversed-polarity, transient current & voltage protection
- Suitable for the measurement of low pressure and vacuum pressure
- Anti-corrosion, anti-attrition, anti-impact
- Zero & Span adjustment ~5% locally via potentiometer inside Hirschmann Connector
pressure medium
gas or liquid compatible to stainless steel
pressure ranges
0~0.1...1000bar
overload pressure
150%FS
output signal
4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V
accuracy
0.25%FS, 0.5%FS
load resistance
RL =(U-12V)/0.02A (4-20mA current output) U—loop voltage (V)
long-term stability
<0.2%FS/year
supply voltage
12~36VDC
compensated temperature range
0~70°C
operating temperature range
-30~80°C
storage temperature range
-40~120°C
temperature coefficient of zero
0.2%FS/10
temperature coefficient of span
0.2%FS/10
insulation resistance
100MΩ@50VDC
process connection
G1/2, G1/4, 1/4NPT, M20x1.5, flange type
electrical connection
Hirschmann DIN 43650, aviation, water-proof, 3m cable(lock nut)
material of wetted part
1Cr18Ni9Ti (321 SS)
material of pressure membrane
316L
material of housing
1Cr18Ni9Ti (321 SS)
sealing
n-Butyronitrile or fluoro-rubber sealing ring
Local Zero & Span Adjustment
Only available with Hirschmann Connector
